The Robotic Sixth Finger:
Supernumerary Robotic Fingers to compensate and
augment the human manipulation abilities

#SIRSLab

Department of Information Engineering and Mathematics, University of Siena, Italy




homepage




This website summarizes our research on wearable extra fingers and the evolution of the Robotic Sixth Finger.

In our recent work [10], we presented the Soft-SixthFinger, a wearable robotic extra-finger designed to be used by chronic stroke patients to compensate for the missing hand function of their paretic limb. The patient can control the flexion/extension of the robotic finger through the eCap, an Electromyography (EMG) interface embedded in a cap. The user can control the device contracting the frontalis muscle by moving his or her eyebrows upwards. The Soft-SixthFinger has been designed as tool that can be used by chronic stroke patients to compensate for grasping in many Activities of Daily Living (ADL). It can be wrapped around the wrist and worn as a bracelet when not used. The light weight and the complete wireless connection with the EMG interface guarantee a high portability and wearability. We tested the device with qualitative experiments involving six chronic stroke patients. Results show that the proposed system significantly improves the performance of the considered tests and the autonomy in ADL. A video is available here.

fig_5

Fig. 1. The Soft-SixthFinger. Ecap, wirele The robotic extra-finger works with the paretic limb to compensate for hand grasp functionality. The patient can control the device thanks to a wearable EMG interface embedded in a cap called eCapss EMG control interface for soft sixthfinger. The device can be wrapped as bracelet when being not used.

fig_6

Fig. 2. Examples of ADL Bi-manual tasks From the top left, clockwise: unscrew a jar, open a can, squeeze a toothpaste tube and open a squared can.

Our work presented in [9-10], won the Best Demonstration Award at symposium (HAPTICS), Philadelphia, USA, 2016. We proposed hRing to control the Soft- SixthFinger (SSF) and to render haptic informations to provide cutaneous stimuli. The hRing is a novel wearable cutaneous device for the proximal finger phalanx, see Fig 3. A video is available here.



fig_7

Fig. 3. The hRing as haptic and control interface for Soft-SixthFinger.

We proposed to use a robotic the Robotic Sixth Finger together with the paretic hand/arm, to constrain the motion of the object. The device can be worn on the user’s forearm by means of an elastic band. The systems acts like a two-finger gripper, where one finger is represented by the Robotic Sixth Finger, while the other by the patient’s paretic limb. The patient can regulate the finger flexion/extension through a wearable switch embedded in a ring worn on the healthy hand. Two possible predefined motions can be chosen to obtain either a precision or a power grasp. In addition to the switch, the proposed ring interface also embeds a vibrotactile motor able to provide the patient with information about the force exerted by the device. The preliminary results with patients are presented in [5]. A video is available here.

fig_3

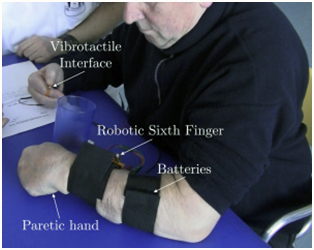

Fig. 4. The Robotic Sixth Finger for hand grasping compensation in chronic stroke patients.

In [9] we introduced an EMG interface to control the finger flexion/extension as well as a compliance control to let the finger adapts to the shape of the grasped object.

fig_4

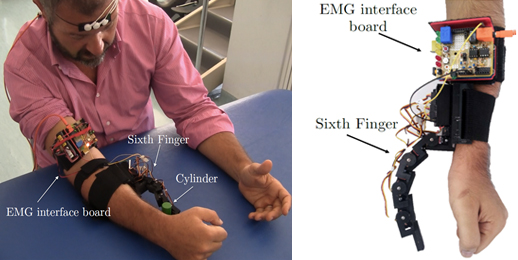

Fig. 5. On the left, the EMG electrodes are placed on the patient forehead. On the right EMG board interface with exra robotic finger.



We started to investigate how to enhance the capability of the human hand by means of wearable robots in 2011 [1]. The goal was to integrate the human hand with an additional robotic finger as represented in Fig. 6.

fig_1

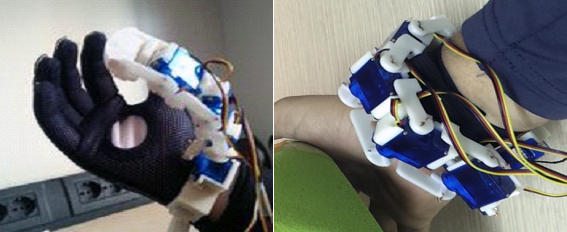

Fig. 6. The Robotic Sixth Finger concept. The device is worn like a bracelet and pops up when needed.

We firstly investigate the potentials of extra-finger in healthy subjects. Such devices could give humans the possibility to manipulate objects in a more efficient way, enhancing our hand grasping dexterity/ability. The first prototype has been presented in [2] together with several examples of the extra-finger applications. Together with the design issues related to portability and wearability of the devices, another critical aspect was integrating the motion of the extra–fingers with that of the human hand. In [3], we presented a mapping algorithm able to transfer to the extra–fingers a part or the whole motion of the human hand. A commercial dataglove was used to measure the hand configuration during a grasping task. A video is available here.

Although this control approach guarantees a reliable tracking of the human hand, there was two main drawbacks to be solved. First, the user lacked a feedback of the robotic finger status and could only perceive the force exerted by the device mediated by the grasped object. The second problem was related to the approaching phase of the grasp. In fact, the algorithm presented in [3] considers the motion of the whole hand to compute the motion of the extra finger, thus limiting the possibility of the user to make fine adjustments to adapt the finger shape to that of the grasped object. In [4] we addressed these issues by introducing a vibrotactile interface that can be worn as a ring. The human user receives information through the vibrotactile interface about the robotic finger status in terms of contact/no contact with the grasped object and in terms of force exerted by the device. Regarding the grasp approaching phase, we introduced a new control strategy that enables the finger to autonomously adapt to the shape of the grasped object.

fig_2

Fig. 7. The Robotic Sixth Finger together with the vibrotactile interface ring.

The experience gained with healthy subjects was fundamental for the development of Robotic Sixth Finger for compensating hand function in chronic stroke patients.



Related Publications

2011
[1] O. A. Atassi, “Design of a robotic sixth finger for grasping enhancement,” Master’s thesis, Universita` degli Studi di Siena (advisor: Domenico Prattichizzo), December 2011.

2014
[2] D. Prattichizzo, M. Malvezzi, I. Hussain, G. Salvietti. The Sixth-Finger: a Modular Extra-Finger to Enhance Human Hand Capabilities. In Proc. IEEE Int. Symp. in Robot and Human Interactive Communication, Pages 993-998, Edinburgh, United Kingdom, 2014.
[3] D. Prattichizzo, G. Salvietti, F. Chinello, M. Malvezzi. An Object-based Mapping Algorithm to Control Wearable Robotic Extra-Fingers. In Proc. IEEE/ASME Int. Conf. on Advanced Intelligent Mechatronics, Pages 1563-1568, Besançon, France, July, 2014.

2015
[4] I. Hussain, L. Meli, C. Pacchierotti, G. Salvietti, D. Prattichizzo. Vibrotactile haptic fedback for intuitive control of robotic extra fingers. In Proc. IEEE World Haptics Conference (WHC), Chicago, IL, June, 2015.
[5] I. Hussain, G. Salvietti, L. Meli, C. Pacchierotti, D. Prattichizzo. Using the robotic sixth finger and vibrotactile feedback for grasp compensation in chronic stroke patients. In Proc. IEEE/RAS-EMBS International Conference on Rehabilitation Robotics (ICORR), Singapore, Republic of Singapore, 2015. [Finalist for the Best Student Paper Award]
[6] D. Prattichizzo. The interplay between humans and robots in grasping. In Proc. International Symposium on Robotic Research, Sestri Levante, Italy, September, 2015.
[7] I. Hussain, G. Salvietti, M. Malvezzi and D. Prattichizzo. Design guidelines for a wearable robotic extra-finger. In proc. IEEE Int. Forum on Research and Technology for Society and Industry, Turin, Italy September, 2015.
[8] G. Salvietti, I. Hussain, D. Prattichizzo. The Robotic Sixth Finger: a Wearable Compensatory Tool to Regain Grasping Capabilities in Paretic Hand. In Proc. ISRR 2015, In press, Sestri Levante, Italy, 2015.

2016
[9] G. Salvietti, I. Hussain, D. Cioncoloni, S. Taddei, S. Rossi, D. Prattichizzo. Compensating Hand Function in Chronic Stroke Patients Through the Robotic Sixth Finger. Transaction on Neural System and Rehabilitation Engineering.
[10] I. Hussain, G. Salvietti, G. Spagnoletti, D. Prattichizzo. The Soft-SixthFinger: a Wearable EMG Controlled Robotic Extra-Finger for Grasp Compensation in Chronic Stroke Patients. IEEE Robotics and Automation Letters.
[11] I. Hussain, G. Salvietti, D. Prattichizzo. On Control Interfaces for the Robotic Sixth Finger. In Proc. Augmented Human 2016, In press, Geneva, Switzerland, 2016.

Posters and Demonstrations

2016
[12] G. Spagnoletti, I. Hussain, C. Pacchierotti, G. Salvietti, and D. Prattichizzo. “The hRing as a wearable haptic interface for extra robotic fingers.”  Short Paper at the at the IEEE Haptics Symposium (HAPTICS), Philadelphia, USA, 2016.
[13] G. Spagnoletti, I. Hussain, C. Pacchierotti, G. Salvietti, and D. Prattichizzo. “The hRing as a wearable haptic interface for extra robotic fingers.”  Hands-on demostration at the IEEE Haptics Symposium (HAPTICS), Philadelphia, USA, 2016. Best Demonstration Award winner.
[14] I. Hussain, D. Prattichizzo, G. Spagnoletti, G. Salvietti, “The Robotic-SixthFinger: a Wearable Robotic Compensatory Tool for Grasp Compensation in Chronic Stroke Patients”. Workshop on Exploiting contact and dynamics in manipulation, ICRA 2016.
[15] I. Hussain, D. Prattichizzo, G. Spagnoletti, G. Salvietti, “Wearable robotic compensatory devices for Object Grasping and Stabilization in Hemiparetic Limbs”. Workshop on Human-Robot Interfaces for Enhanced Physical Interactions ICRA 2016.
